From AWS Console Experience to Building Infrastructure with Terraform

For a while, AWS made sense to me one service at a time.

Storage, compute, databases, networking, and IAM all have their own jobs.

I understood the basic job of each service.

But this project taught me that knowing the services is only part of it. The bigger challenge is getting them to work together in a real setup.

That is where things started to click.

Before this project, I was already comfortable working in the AWS console. The console is useful. You can explore services, test settings, and see how AWS organizes things.

But for a real project, clicking around is not enough.

You need infrastructure that can be repeated. You need changes that can be reviewed. You need a setup that someone else can understand without asking, “What did you click?”

That is where Terraform changed the game for me.

This project helped me see AWS, Terraform, and CI/CD as one connected workflow instead of separate tools.

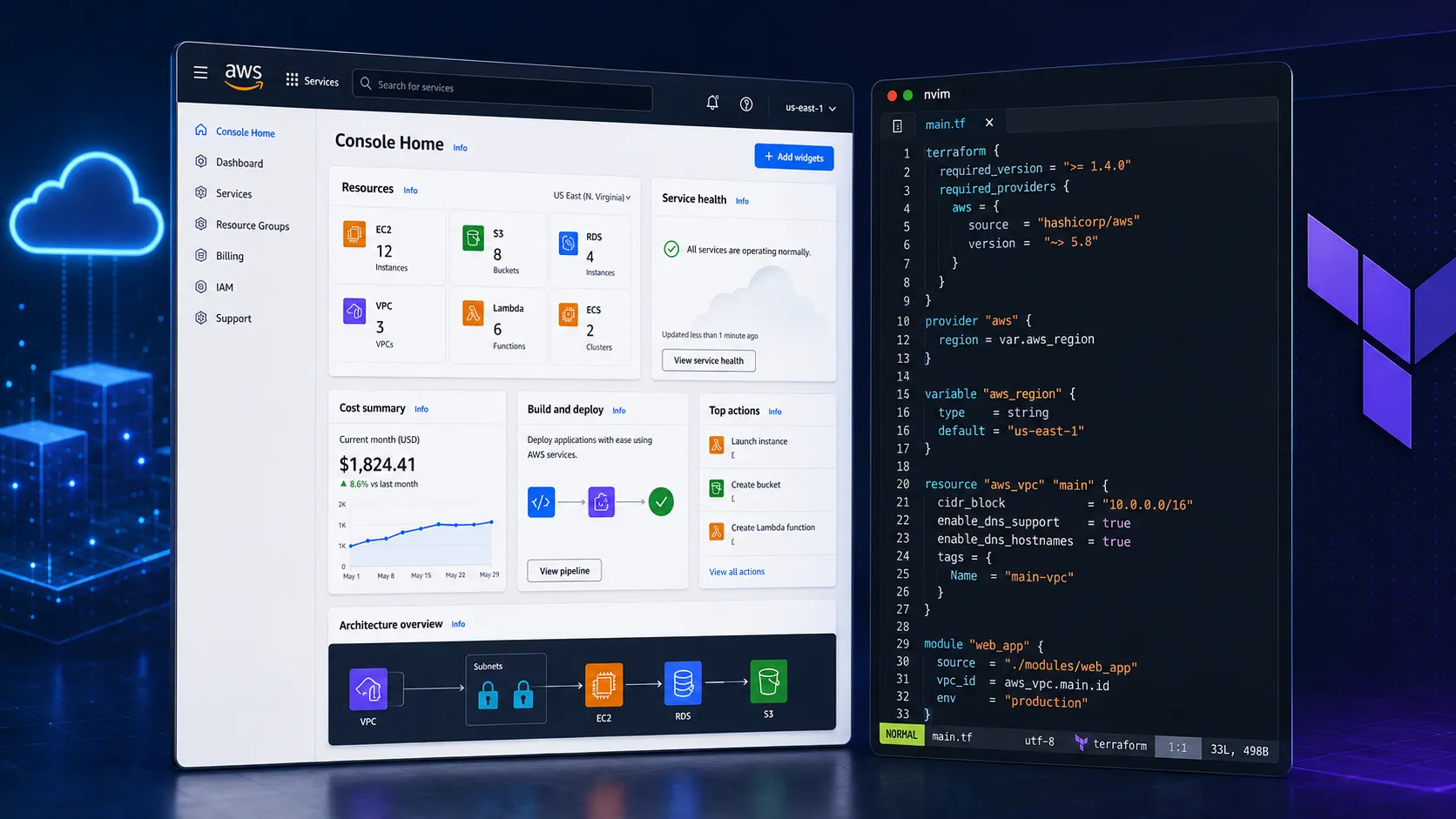

AWS vs Terraform

Moving From Manual Setup to Infrastructure as Code

The goal was to build a development environment for a real-world project and set it up in a way that could grow over time.

The first big step was setting up Terraform with remote state in S3.

That might sound like a boring backend detail, but it matters a lot.

Terraform state is how Terraform keeps track of what it created. It knows what exists in AWS, what settings were used, and what needs to change next.

Local state is fine when you are testing something alone. But for a real project, the state file should not just live on one laptop.

So I moved the state into an S3 backend and started treating it like an important part of the infrastructure.

Remote State, Versioning, and Locking

Remote state taught me that Terraform best practices are not just about writing good code. They are also about keeping the process safe.

The state file needs to be shared, protected, and recoverable.

That is why S3 versioning is important.

With versioning turned on, the state file has history. If something gets overwritten or a bad apply causes an issue, there is a way to recover instead of panicking.

Locking was another part that helped me understand how Terraform grows from a local tool into a team workflow.

When I first started, it was easy to think, “I am the only one running this, so what could go wrong?” But once the project starts moving toward automation, that mindset changes. Two people, or two pipeline jobs, should not be able to update the same state file at the same time.

That is where locking started to make sense to me. It is not just a Terraform setting. It is a guardrail that protects the whole workflow while the project grows.

I also learned that the backend setup itself has evolved. A lot of older Terraform examples still use DynamoDB for S3 state locking, so that was the option I expected to reach for at first. But for this setup, the simpler path was using the S3 backend’s native lockfile with use_lockfile = true.

So the safer backend setup became less about copying an old pattern and more about understanding what the project needed next:

This was when Terraform started to feel less like a tool that just creates resources and more like a safer way to manage infrastructure changes.

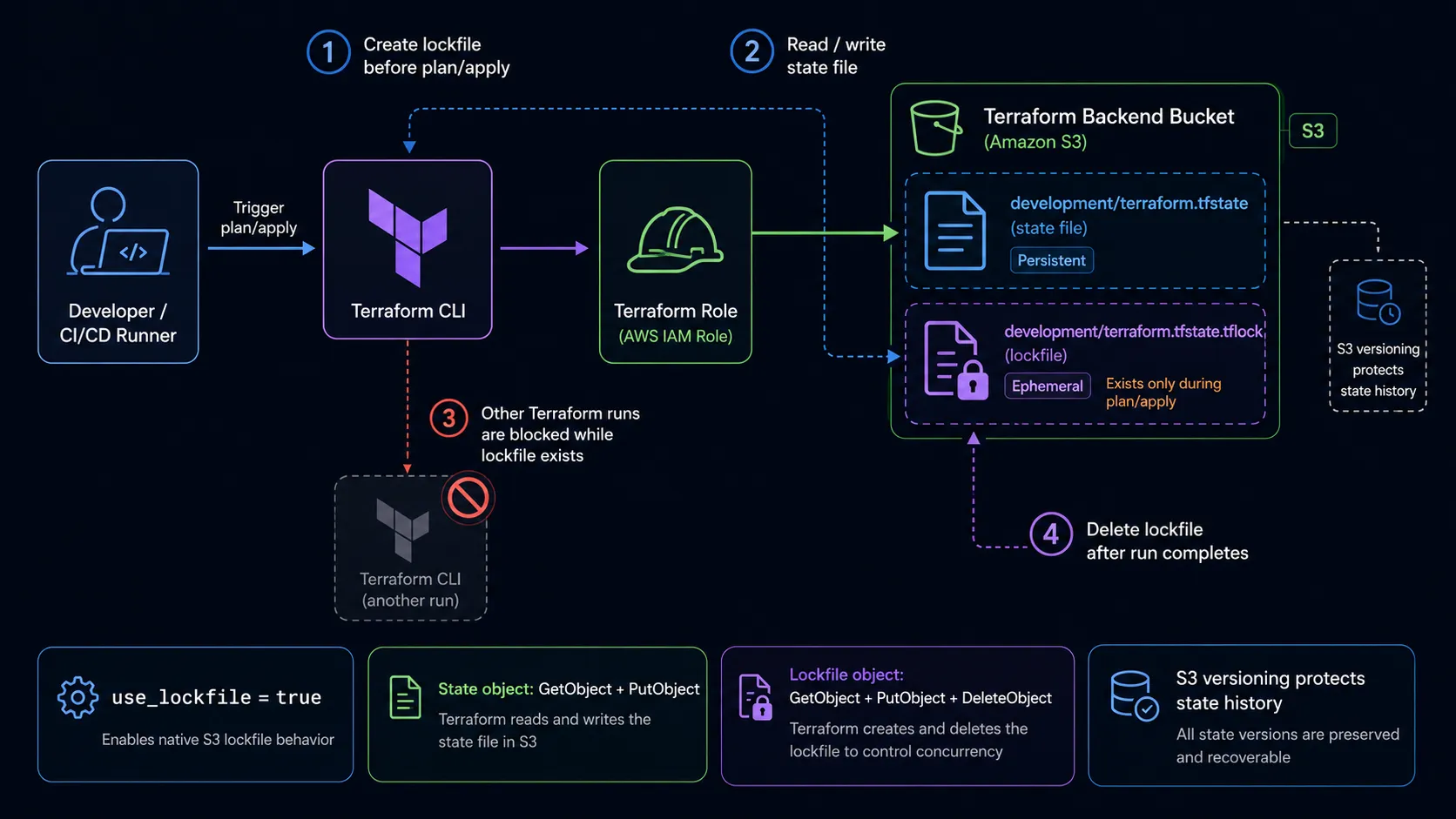

Terraform Versioning

A Few Terraform Practices That Stuck With Me

As the project grew, I started caring more about the Terraform workflow itself.

At first, it is easy to focus only on whether the resources get created. But the process around Terraform matters just as much.

A basic safe workflow started to look like this:

terraform fmt -recursive
terraform validate
terraform plan -out=development.tfplan
terraform apply development.tfplan

terraform fmt -recursive keeps the Terraform code formatted across modules and environments.

terraform validate catches configuration issues before planning.

terraform plan -out=development.tfplan saves the exact plan so it can be reviewed before applying.

terraform apply development.tfplan applies the reviewed plan instead of creating a new one at apply time.

For drift, I also started using:

terraform plan -refresh-only

That helped me compare Terraform state with the real AWS environment before making changes.

Remote State Example

A simplified S3 backend looks like this:

terraform {
  backend "s3" {
    bucket       = "example-terraform-state-bucket"
    key          = "development/terraform.tfstate"
    region       = "us-east-1"
    encrypt      = true
    use_lockfile = true
  }
}

The important parts are not the exact names. The important parts are the practices:

One small permission detail matters here: the Terraform role needs access to the state object and to the lockfile object. When use_lockfile is enabled, Terraform creates a .tflock object next to the state file, so the role needs permission to read, write, and delete that lockfile while keeping the actual state file protected.

This is the kind of setup that makes Terraform safer once the infrastructure is part of a real project.

Dealing With Drift

Another big lesson was Terraform drift.

Drift happens when what is actually in AWS does not match what Terraform thinks is there.

Sometimes that happens because someone changed a resource manually. Sometimes AWS updates something behind the scenes. Sometimes a provider update makes Terraform read a resource a little differently.

At first, drift can be annoying because Terraform shows changes you did not expect.

That is where terraform plan -refresh-only helped.

A refresh-only plan lets Terraform check the real AWS environment and compare it with the state file without trying to change anything right away.

That gave me a safer way to understand what was going on.

Instead of jumping straight to apply, I could stop and ask:

Is this a real change?
Is this just AWS-managed info?
Did the provider change how it reads this resource?
Should I update the state, or should I update the Terraform code?

That made me more careful.

Terraform is powerful, but it is not something you should rush. Sometimes the best move is to slow down, check the drift, refresh the state on purpose, and understand what changed first.

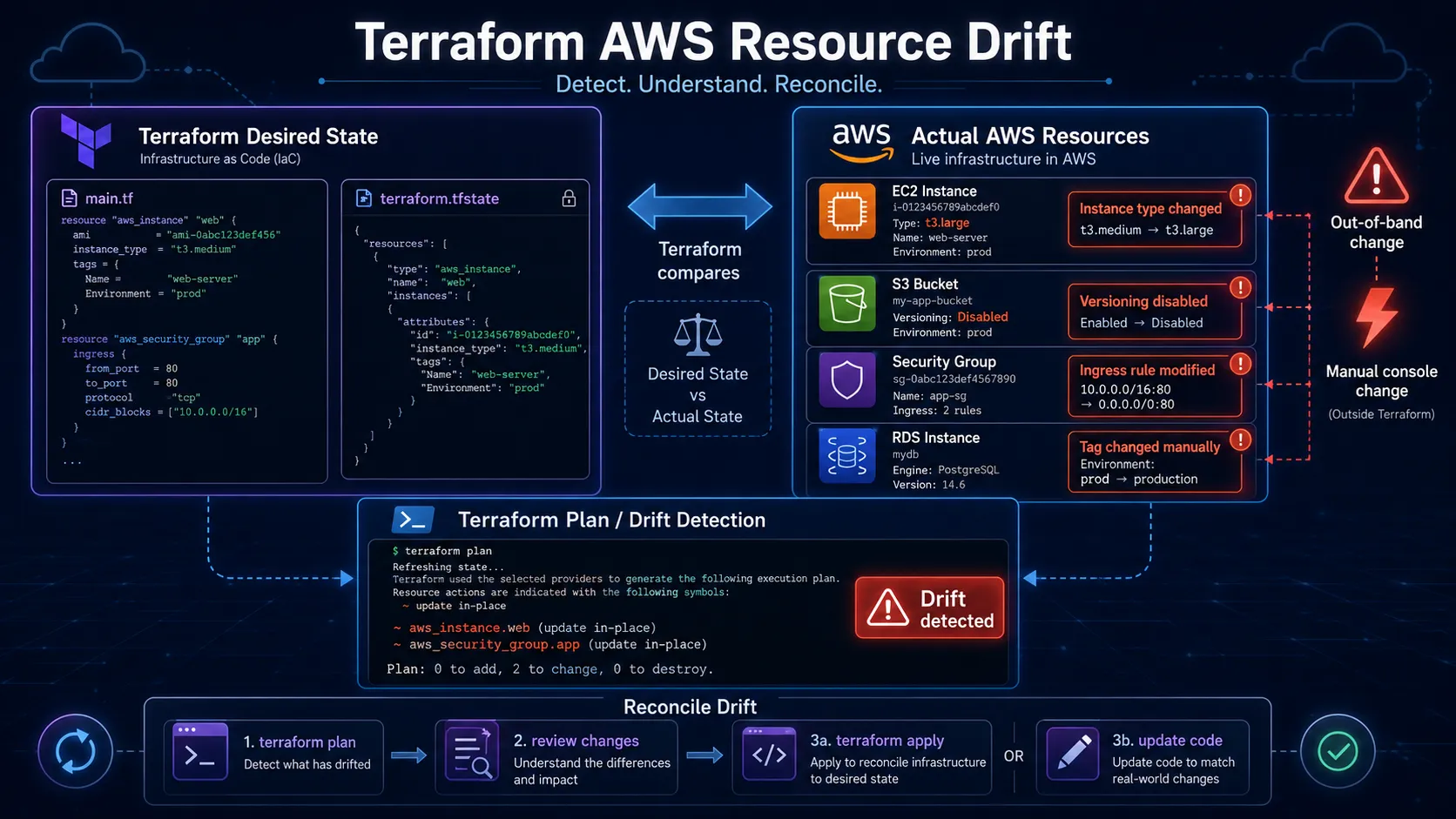

Terraform Drift Example

Building the Foundation

Once the backend was ready, I started building the core infrastructure.

The foundation covered the main pieces you would expect in a cloud environment: networking, access control, application runtime, storage, logging, and deployment support.

At first, I thought the hard part would be writing Terraform.

It was not.

The harder part was figuring out how the AWS resources should connect and how to keep that setup clean in code.

Learning How AWS Resources Connect

One of the biggest things I learned was what belongs inside a VPC and what does not.

When you work in the AWS console, it is easy to think about each service by itself. Terraform made me think more about the full path: networking, permissions, dependencies, and traffic flow.

The VPC is where the network-scoped pieces live: private networking, routing, security boundaries, databases, and application networking.

Other AWS-managed services sit outside that VPC boundary, but they still connect to the app through permissions, endpoints, service integrations, or deployment pipelines.

That made the architecture much easier to understand.

Instead of just asking, “Which AWS service do I need?” I started asking better questions:

Where does the request start?
What needs to be public?
What should stay private?
Which service needs permission to talk to another service?
What path does the traffic take?
What should Terraform manage?
What should CI/CD handle?

That was a big shift for me.

Building the Application Stack

The application stack included a containerized backend and a registry for storing application images.

That setup taught me a lot about the line between infrastructure and deployment.

This is where I hit one of those simple problems that teaches a bigger lesson.

The runtime was trying to deploy an image tag that had not been pushed to the registry yet. Terraform had created the infrastructure correctly, but the service could not run an image that was not there.

The infrastructure was fine. The app artifact was missing.

That made the connection between Terraform and CI/CD much clearer.

Terraform can build the environment, but the pipeline still has to build and ship the app into that environment.

I also ran into state and provider issues where AWS-managed fields changed behind the scenes. Terraform saw differences between state and the real infrastructure, and I had to figure out if it was a real change, provider behavior, or harmless drift.

That was when Terraform state really started to make sense.

Terraform is not just creating stuff. It is tracking what it owns, what the setup should look like, and what changed.

Moving From App Runner to ECS Express Mode

A big part of the project was deciding how the backend should run.

App Runner is a good way to get a containerized service online quickly. It hides a lot of the operational details, which is useful when the goal is to prove that the app works.

But as the infrastructure became more complete, App Runner started to feel like the wrong long-term direction for this project.

For this project, App Runner no longer felt like the strongest long-term AWS path compared with ECS, especially around networking, IAM, deployment control, and ecosystem fit.

That made ECS Express Mode a better direction for this project.

The migration was not only about changing compute services. It was about moving away from a simple managed runtime and toward a runtime that matched where the rest of the AWS infrastructure was going.

With ECS Express Mode, the app stack became easier to reason about as part of the larger system:

Container image is built in CI/CD
Image is pushed to the registry
ECS service runs the selected image tag
Networking and permissions are managed through Terraform
Deployments update the running service

That flow made the infrastructure and deployment responsibilities clearer.

Terraform owns the runtime resources. CI/CD owns the app artifact and release process.

Why the Runtime Change Mattered

The App Runner setup helped me move fast at the beginning, but ECS Express Mode felt like a better fit for production-style infrastructure.

Instead of only asking, “Can this container run?” I had to think through questions like:

Where should the service live in the network?
Which IAM role does the runtime need?
Which permissions belong to deployment instead of runtime?
How should logs be collected?
What should trigger a new deployment?
How does the service connect to private resources?

Those questions made the backend feel less isolated.

It was no longer just a container running somewhere. It was part of the same system as the VPC, registry, IAM roles, database, logs, and CI/CD pipeline.

That is the kind of setup Terraform is good at describing, because the relationships between resources are just as important as the resources themselves.

Running Into Terraform Dependency Boundaries

One of the most useful lessons was learning when modules were too connected.

At one point, I had too many values being passed between the runtime, networking, IAM, storage, and deployment pieces. Each module started depending on too much information from another module, and the setup became harder to change.

The fix was not to add more Terraform code. It was to make the design simpler.

I had to make the module boundaries cleaner, pass fewer outputs around, and decide which values should be stable inputs instead of hard dependencies.

That helped me see that good Terraform is not only about creating resources. It is also about keeping the infrastructure easy to understand as it grows.

Keeping Modules Focused

The infrastructure became easier to manage once I split responsibilities better.

The runtime module should own the application service. The networking module should own network shape and traffic boundaries. The registry module should own image storage. The deployment workflow should build and publish app artifacts.

Each module can still expose outputs, but those outputs should be intentional.

That made the setup easier to understand and reinforced a Terraform lesson I keep coming back to: modules should have clear jobs. A module should not need to understand the whole system to do its part.

Thinking Through CI/CD

Once the infrastructure foundation was in place, I started planning the CI/CD workflow.

This was another step away from manual cloud setup and toward real cloud engineering.

The AWS console is useful for testing ideas. But for a real project, infrastructure changes need to be reviewed. Builds need to be repeatable. Deployments need guardrails.

For this project, GitHub Actions made the most sense.

The plan is to use GitHub Actions with AWS OIDC instead of long-lived AWS access keys. That lets the workflow assume an IAM role without storing permanent AWS credentials in the repo.

The workflow can handle:

For CI/CD, the main idea was to separate planning from applying.

A pull request workflow should be able to run:

terraform fmt -recursive -check
terraform validate
terraform plan -out=development.tfplan

But terraform apply should be more protected.

For example:

Pull request:
Run fmt, validate, and plan

Manual workflow:
Apply the reviewed plan after approval

That separation matters because infrastructure changes can affect networking, databases, permissions, and live services.

Plan should be easy to run.

Apply should be intentional.

One design decision I cared about was not giving automatic workflows too much power.

A safer setup is to split responsibilities:

Plan role:
Used automatically
Lower permissions
Runs formatting, validation, and plans

Apply role:
Used manually
Protected by environment approvals
Has stronger permissions

That is the kind of detail that matters in cloud work.

It is not just about whether the pipeline works. It is about whether the pipeline is safe, reviewable, and scoped the right way.

What I Understand Better Now

This project taught me a lot more than how to write Terraform files.

I have a better understanding of:

The biggest change was not one specific AWS service.

It was learning to think in systems.

AWS is not just a bunch of services. Terraform is not just resource blocks. CI/CD is not just automation for convenience.

The real work is understanding how traffic, permissions, state, app builds, and dependencies move through the system.

Final Thoughts

This project started as a way to go deeper with AWS and Terraform.

It became more than that.

I went from understanding AWS services one by one to building a real development environment with networking, containers, ECS runtime design, storage, database infrastructure, and CI/CD planning.

It was not perfectly smooth. I ran into Terraform state issues, provider behavior, drift, dependency cycles, IAM confusion, missing image tags, networking decisions, and deployment questions.

That is what made it valuable.

Reading docs teaches the concepts. Working through the AWS console helps you understand how services behave. Building infrastructure with Terraform and connecting it to CI/CD teaches the real stuff.

The real learning happened in the messy parts: when Terraform could not build the graph, when the runtime could not find an image, when the state did not match AWS, when permissions were almost right but not quite, when the runtime design needed more control, and when the design needed to be simplified instead of patched again.

That is the part of cloud engineering I enjoy most: connecting the pieces, understanding the system, and making it more stable, secure, and repeatable.
